Current Position: Homepage > Product centre / Attachments for skid steer loader / Remove snow of road

/uploadfile/202406/27a0e9988db3.jpg

/uploadfile/202406/81c95ad38c5bda2.jpg

/uploadfile/202406/51aea1df8746827.jpg

Remove snow of road

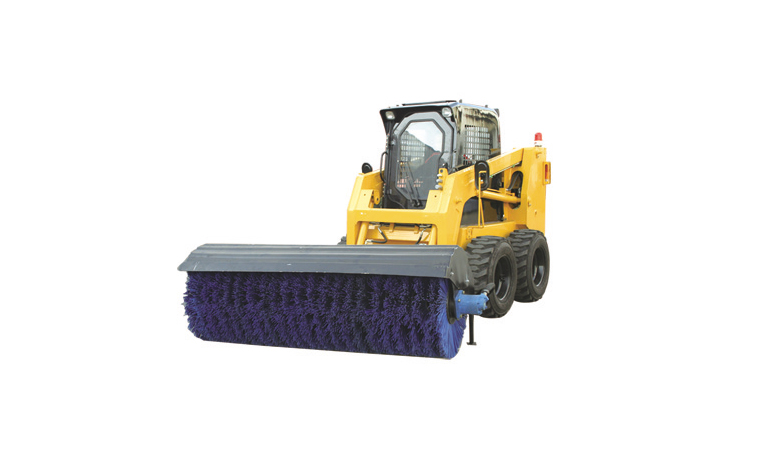

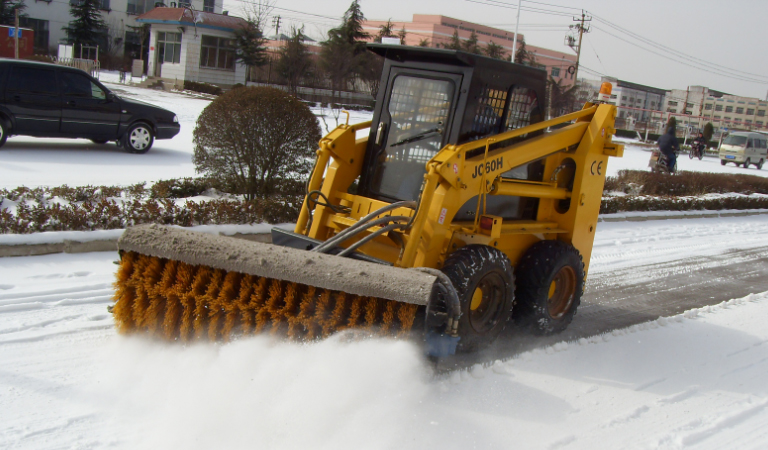

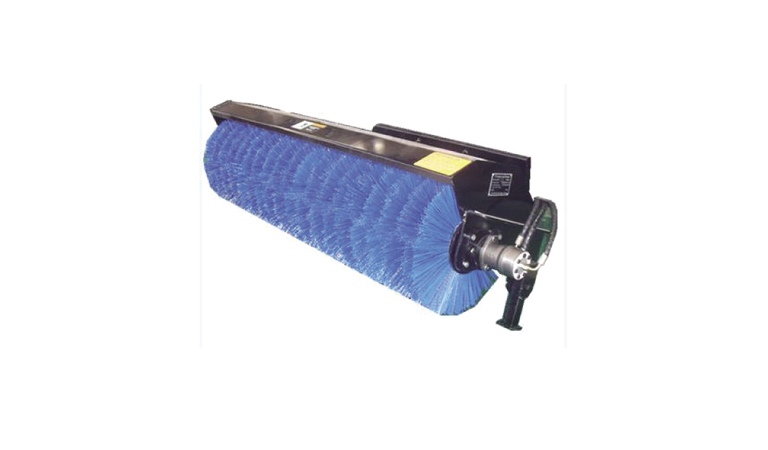

Angle Broom

intersection angle（°）：30°
Weight（kg）：340kg
Brush diameter（mm）：560mm
Operating Width（mm）：1828mm
Operating pressure（Mpa）：16Mpa
Operating flow（L/mm）：50-125L/mm

+86 538 8503797

Order Consultation

Technology parameters

Item	Unit	72 ＂ /560	72 ＂ /670	84 ＂ /670	84 ＂ /810
Operating Width	mm	1828	1828	2133	2133
Brush diameter	mm	560	670	670	812
intersection angle	°	30	30	30	25
Operating pressure	MPa	16	16	16	16-21
Operating flow	L/mm	50-125	50-125	50-125	50-125
Weight	kg	340	380	420	480
Length	mm	2030	2030	2335	1780
Width	mm	1020	1020	1050	2450
Height	mm	640	740	740 900
